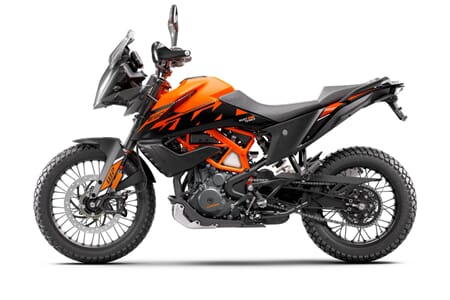

KTM 390 ADVENTURE SW 2024
Gone are the days when going from A to B. The 2024 KTM 390 ADVENTURE rewrites the rulebook on what the daily commute needs to be. Merging all-road versatility and proven reliability with real-world performance, not to mention adventure-ready spoked wheels, a proven 373 cc powerplant, and a class-leading chassis, the KTM 390 ADVENTURE not only seeks out new adventures - it leaves no path unexplored.
ENGINE
- TORQUE37 Nm
- TRANSMISSION6-speed
- COOLINGLiquid cooled
- POWER IN KW32 kW
- STARTERElectric starter
- STROKE60 mm
- BORE89 mm
- CLUTCHPASC™ antihopping clutch, mechanically operated
- CO2 EMISSIONS78 g/km
- DISPLACEMENT373.2 cm³
- EMSBosch EMS with RBW
- DESIGN1-cylinder, 4-stroke engine
- FUEL CONSUMPTION3.37 l/100 km
- LUBRICATIONWet sump
CHASSIS
- TANK CAPACITY (APPROX.)14.5 l
- ABSBosch 9.1 MP (incl. Cornering-ABS and offroad mode, disengageable)
- FRONT BRAKE DISC DIAMETER320 mm
- REAR BRAKE DISC DIAMETER230 mm
- FRONT BRAKEFour-piston radial fixed calliper
- REAR BRAKESingle-piston floating calliper, brake disc
- CHAIN520 X-Ring
- FRAME DESIGNSteel trellis frame, powder coated
- FRONT SUSPENSIONWP APEX 43
- GROUND CLEARANCE200 mm
- REAR SUSPENSIONWP APEX - Monoshock
- SEAT HEIGHT855/830 mm
- STEERING HEAD ANGLE63.5 °
- SUSPENSION TRAVEL (FRONT)170 mm
- SUSPENSION TRAVEL (REAR)177 mm
