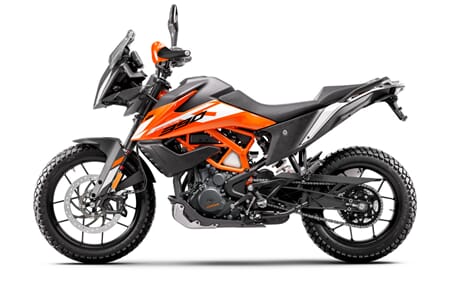

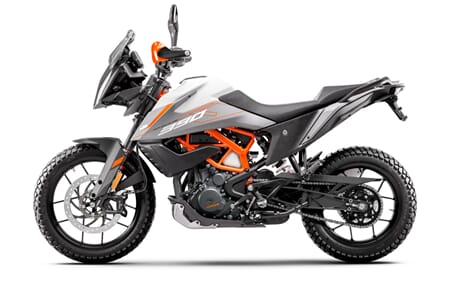

KTM 390 ADVENTURE 2024
Merging all-road versatility and proven reliability with real-world performance, The 2024 KTM 390 ADVENTURE makes heading on an adventure an everyday possibility. Powered by a proven 373 cc powerplant churning out 44 HP via a 6-speed gearbox, a class-leading chassis, and a 400 km tank range thanks to a 14.5-litre tank, it hits the road with purposeful intent. Whats more, adjustable 43 mm WP APEX forks, 170 mm of wheel travel, OFFROAD MODE, and the option of 19/17" heavy-duty tubed spoked wheels, mean it is perfectly suited to the trail too. Download the full technical data sheet at the bottom for more info.
ENGINE
- TORQUE37 Nm
- TRANSMISSION6-speed
- COOLINGLiquid cooled
- POWER IN KW32 kW
- STARTERElectric starter
- STROKE60 mm
- BORE89 mm
- CLUTCHPASC™ antihopping clutch, mechanically operated
- CO2 EMISSIONS78 g/km
- DISPLACEMENT373.2 cm³
- EMSBosch EMS with RBW
- DESIGN1-cylinder, 4-stroke engine
- FUEL CONSUMPTION3.37 l/100 km
- LUBRICATIONWet sump
CHASSIS
- TANK CAPACITY (APPROX.)14.5 l
- ABSBosch 9.1 MP (incl. Cornering-ABS and offroad mode, disengageable)
- FRONT BRAKE DISC DIAMETER320 mm
- REAR BRAKE DISC DIAMETER230 mm
- FRONT BRAKEFour-piston radial fixed calliper
- REAR BRAKESingle-piston floating calliper, brake disc
- CHAIN520 X-Ring
- FRAME DESIGNSteel trellis frame, powder coated
- FRONT SUSPENSIONWP APEX 43
- REAR SUSPENSIONWP APEX - Monoshock
- SEAT HEIGHT855/830 mm
- STEERING HEAD ANGLE63.5 °
- SUSPENSION TRAVEL (FRONT)170 mm
- SUSPENSION TRAVEL (REAR)177 mm
