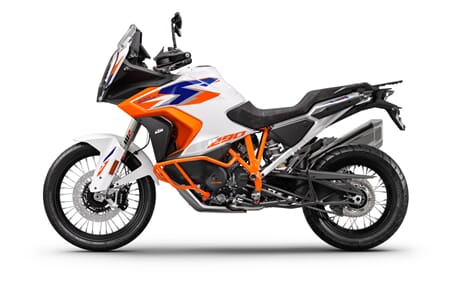

KTM 1290 SUPER ADVENTURE R 2024
From the Skeleton Coast to the Himalayas, the 1290 SUPER ADVENTURE R is engineered to cross the wildest, most challenging terrain with unmatched ability and class-leading performance. Not only has it proven itself to be without peers in the large-capacity extreme adventure segment, but it also remains the ultimate READY TO RACE choice in travel machines for hardened cross-country nomads.
ENGINE
- TORQUE138 Nm
- TRANSMISSION6-speed
- COOLINGLiquid cooled
- POWER IN KW118 kW
- STARTERElectric starter
- STROKE71 mm
- BORE108 mm
- CLUTCHPASC (TM) slipper clutch, hydraulically actuated
- CO2 EMISSIONS134 g/km
- DISPLACEMENT1301 cm³
- EMSKeihin EMS with RBW and cruise control, double ignition
- DESIGN2-cylinder, 4-stroke, V 75°
- FUEL CONSUMPTION5.7 l/100 km
- LUBRICATIONForced oil lubrication with 3 oil pumps
CHASSIS
- TANK CAPACITY (APPROX.)23 l
- ABSBosch 10.3ME Combined-ABS (incl. Cornering-ABS and offroad mode)
- FRONT BRAKE DISC DIAMETER320 mm
- REAR BRAKE DISC DIAMETER267 mm
- CHAIN525 X-Ring
- DRY WEIGHT221 kg
- FRAME DESIGNChrome-moly tubular space frame, powder-coated
- FRONT SUSPENSIONWP XPLOR-USD, Ø 48 mm
- GROUND CLEARANCE242 mm
- REAR SUSPENSIONWP Xplor PDS shock absorber
- SEAT HEIGHT880 mm
- STEERING HEAD ANGLE64.7 °
- SUSPENSION TRAVEL (FRONT)220 mm
- SUSPENSION TRAVEL (REAR)220 mm
